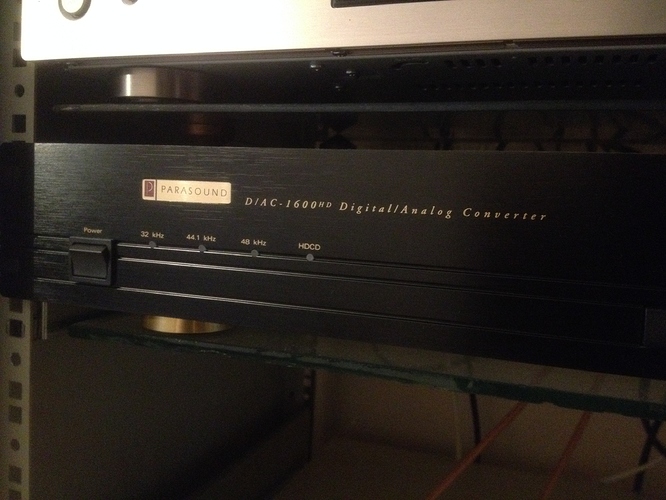

Цифро-аналоговый преобразователь от известнейшей фирмы, проверенной временем. Состояние “как новенький”, не ремонтировался, служил верой и правдой. На фотографиях продаваемый аппарат. Продаётся по причине апгрейда.
FEATURES
Four Digital Inputs
Gold-plated audiophile jacks
De-Emphasis Circuit
Balanced Analog Outputs
Gold-clad precision relays
FR4 glass circuit boards
Low Jitter Crystal Receiver
Three Separate Power Transformers
Digital Record Output Jack
HDCD
Process Decoder
Regulated Power Supplies
Precision Resistors
4 Burr-Brown PCM 63-K DACs
Polarity Inversion Switch
Precision Capacitors
IEC removable AC cord
Silver-plated wiring
Heavy-duty chassis
SPECIFICATIONS
Frequency Response:
2 Hz - 20 kHz, I0.25 dB
Signal to Noise Ratio:
> 108 dB, 113 dB typical
Channel Separation:
> 100 dB @ I kHz
Total Harmonic Distortion:
< 0.0015% @ 1 kHz
Total Harmonic Distortion:
< 0.0015% @ 1 kHz
Amplitude Linearity:
> 100 dB; 102 dB Typical
Phase Linearity:
+/- 0.1 deg @ 20 kHz
Maximum Jitter:
< 50 picoseconds RMS, using selected low jitter Crystal
8412 Digital Interface Receiver
D-A Converters:
Four Burr-Brown PCM 63P-K (highest grade) 20 bit,push-pull for each channel and fully balanced digital operation
Oversampling Rate:
8 X (352.8-kHz)
Digital Input:
32 kHz, 4.1 kHz, 48 kHz; Consumer standard SPDIF
Digital Filters:
PMD-100 High Definition Compatable DigitalDigital Process Decoder
Absolute Polarity:
0 deg or 180 deg switchable
Digital Inputs:
Coaxial:
75 ? RCA
TOSlink fiber optic:
EIAJ Standard CP-340/RC-5720,660 nm typical wavelength
ST module fiber optic:
AT&T Standard, 820 nm typical wavelength
AES/EBU Balanced XLR
Outputs:
Unbalanced Analog Line Out: 3 V nominal, 600 ?
Balanced Analog Line Out: 6 V nominal, 1.2 k ?
Digital: 750 RCA coaxial, 0.5 V peak-to-peak
Power Supplies:
3 separate transformers and nine regulators for digitalcircuits and for each analog channel
Power Requirement:
120 V, 60 Hz, 18W; may be re-wired for 220 - 240 V, 50 Hz
Dimensions:
19" W x 3" H (3 5/8 with feet) x 13 1/8" D
Net Weight:
13.5 lb.
P.S. На СМС не отвечаю.
Полная проверка на месте.
По любым вопросам звоните с 9.00 до 21.00 +7 (926) 215 9318
45000 руб.
